Network Overview

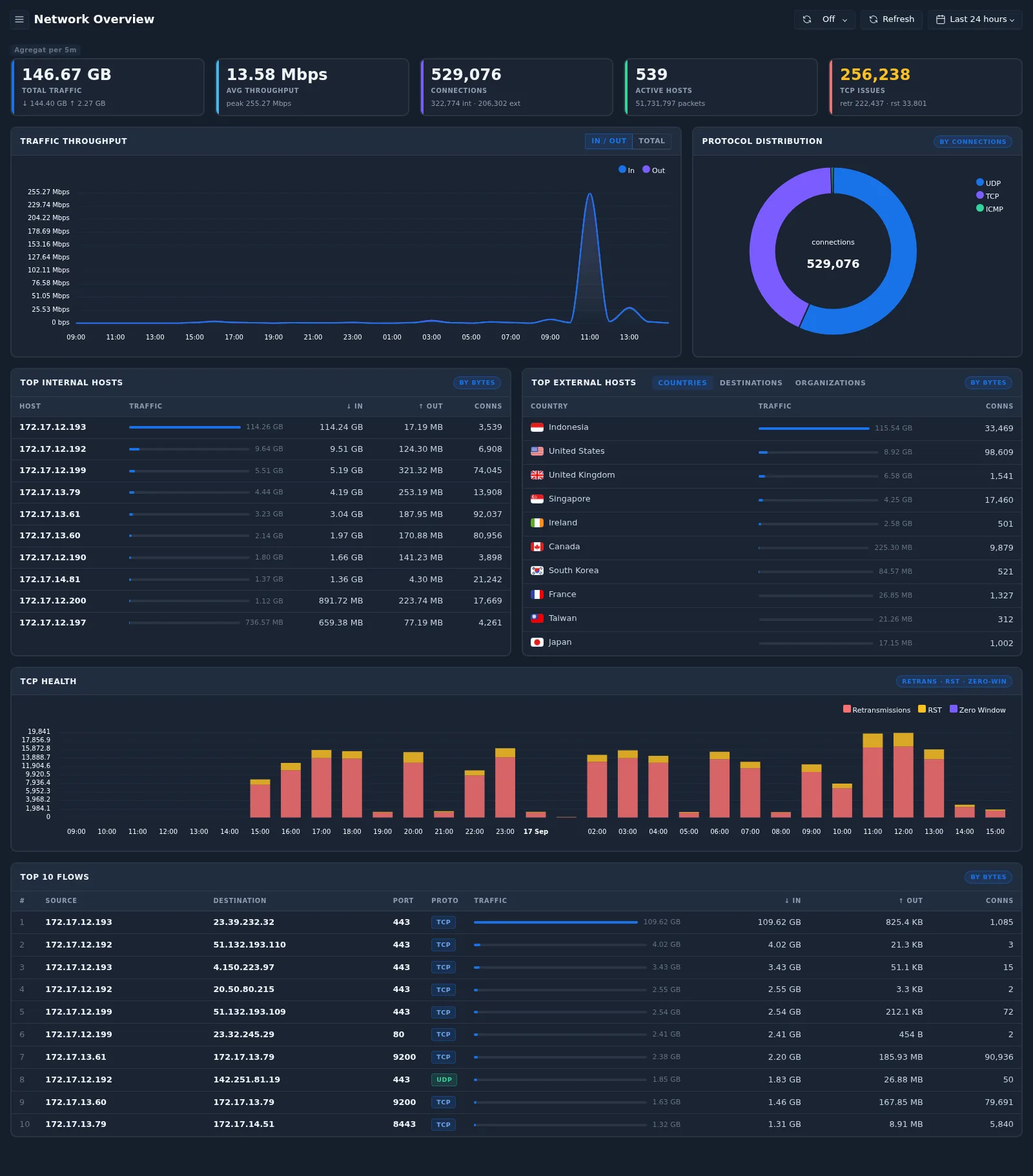

The Network Overview page summarizes network traffic observed from packet mirroring. Data is aggregated in 5-minute intervals.

Menu: Network › Overview

Summary cards

Card	Shows	Drill-down
Total Traffic	Total bytes, split into download (↓) and upload (↑)	Total Traffic by host
Avg Throughput	Average bits per second and the peak value	—
Connections	Total connections, split into internal and external	Total Connections by host
Active Hosts	Number of active hosts and total packets	Active IPs by host
TCP Issues	TCP retransmissions (retr) and resets (rst)	TCP Retransmissions by host

Panels

Panel	How to read it
Traffic Throughput	Throughput over time. Switch between In / Out and Total
Protocol Distribution	Share of connections by transport protocol (TCP, UDP, ICMP)
Top Internal Hosts	Internal hosts ranked by bytes, with inbound, outbound, and connection counts
Top External Hosts	External traffic ranked by bytes. Switch between Countries, Destinations, and Organizations
TCP Health	Retransmissions, resets (RST), and zero-window events over time. High values can indicate congestion, packet loss, or failing connections
Top 10 Flows	Largest source–destination flows by bytes, with port, protocol, inbound, outbound, and connection counts

Metric drill-down pages

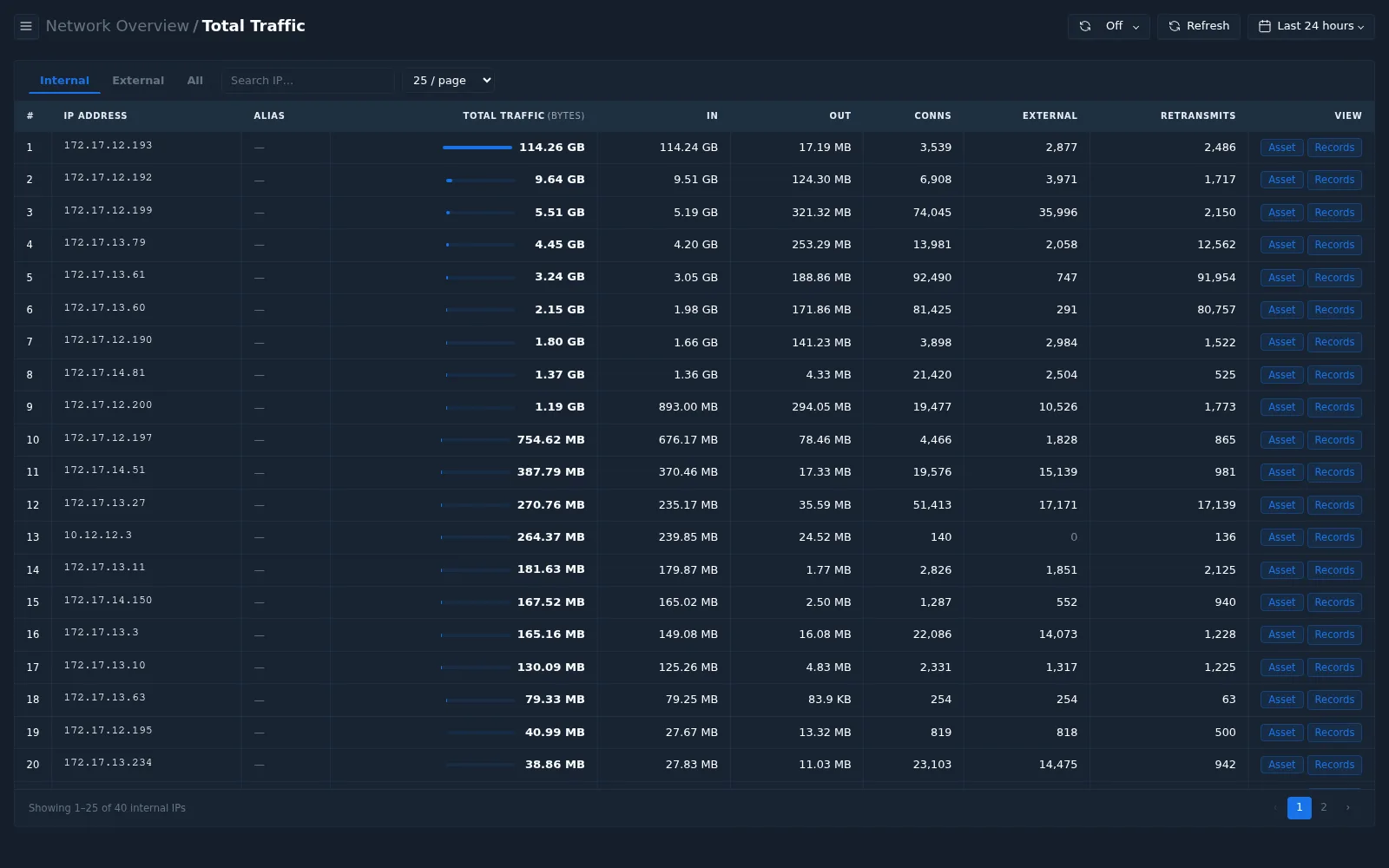

Selecting a summary card opens a ranked table of hosts for that metric.

Drill-down	Ranked by	Other columns
Total Traffic	Total bytes	In, out, connections, external, retransmits
Total Connections	Total connections	Internal, external, traffic, retransmits
Active IPs	Traffic bytes	Connections, external, in, out
TCP Retransmissions	TCP retransmissions	RST, zero window, connections, traffic

On every drill-down page you can:

• Filter hosts by Internal, External, or All.
• Choose the number of rows per page (10, 25, 50, or 100).
• Open Asset or Records for any host.
