How to troubleshoot slow connections

Is it the network, the server, or something else?

"Searches in our application are slow. Is the network the problem?"

This is one of the most common questions an IT or security team receives. With Network Performance Monitoring (NPM), SentriaOne xSIEM answers it from the traffic itself — without installing anything on the servers and without waiting for the problem to happen again.

This walkthrough follows a real finding in a demonstration environment: a service conversation with one TCP retransmission for almost every connection.

Key metrics in one minute

Metric	What it tells you	Healthy
Retransmissions	Packets that had to be sent again because they were lost or not acknowledged in time	A small fraction of packets
RST (reset)	Connections that were refused or aborted	Low
Zero window	The receiver asked the sender to pause — it could not keep up	Zero or close to zero
Round-trip time (RTT)	Time for a packet to reach the other side and be acknowledged	A few milliseconds inside a LAN
Connection state SF	The connection opened and closed normally	The large majority

Step 1 — Spot the symptom on the Network Overview

Open Network › Overview. The TCP Issues card summarizes TCP problems in the time range — here 304,190 issues: 260,008 retransmissions and 44,182 resets.

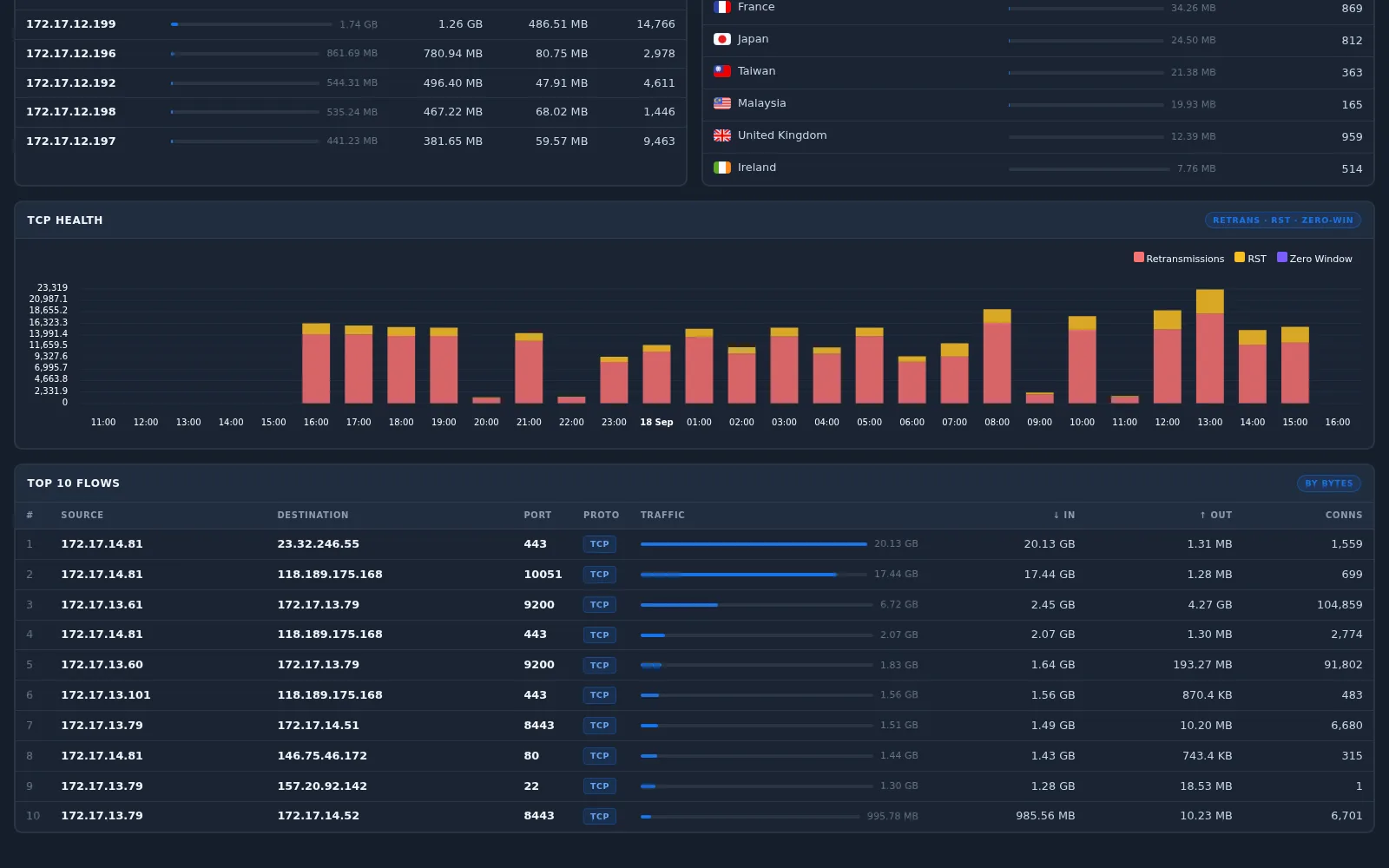

Scroll down to TCP Health and Top 10 Flows.

• TCP Health shows retransmissions (red) almost every hour of the day. A problem that is present all the time points to something systematic rather than a short outage.
• Top 10 Flows shows a busy internal conversation: 172.17.13.61 → 172.17.13.79 on port 9200, with 104,859 connections. A second client, 172.17.13.60, talks to the same server and port.

Step 2 — Rank the hosts by retransmissions

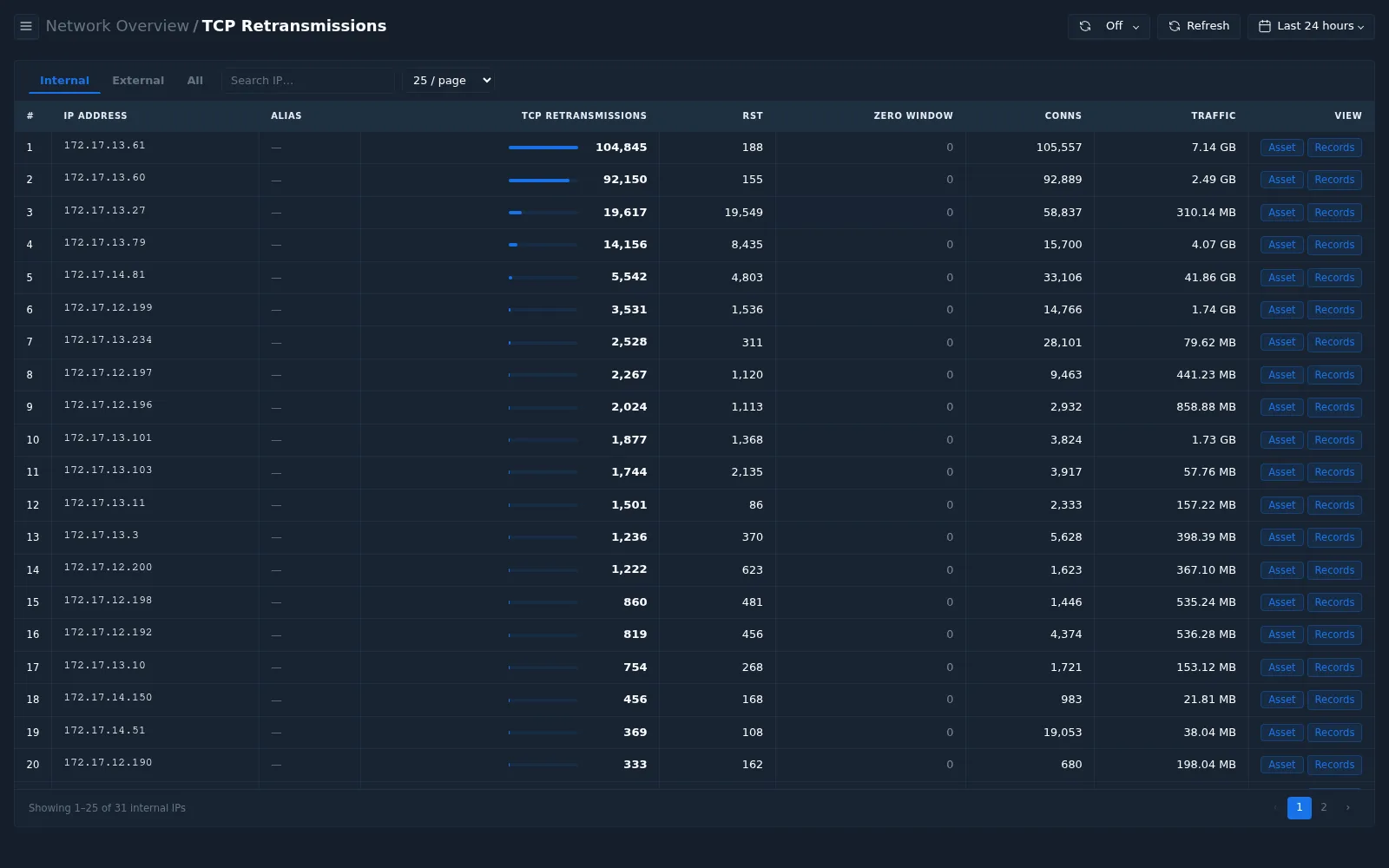

Select the TCP Issues card. The drill-down TCP Retransmissions ranks internal hosts.

Host	Retransmissions	RST	Zero window	Connections	Reading
172.17.13.61	104,845	188	0	105,557	About one retransmission per connection
172.17.13.60	92,150	155	0	92,889	The same pattern
172.17.13.27	19,617	19,549	0	58,837	Mostly resets — a different problem (see below)
172.17.13.79	14,156	8,435	0	15,700	The server both clients talk to

Compare retransmissions with connections. When the two numbers are almost equal, the problem repeats on every connection in the same way.

Different pattern, different story

172.17.13.27 has almost as many resets as retransmissions. Resets in large numbers usually mean connections are being refused — for a public web server this is typical of internet scanning. See How to analyze top affected internal IPs for that investigation.

Step 3 — Narrow down to the conversation

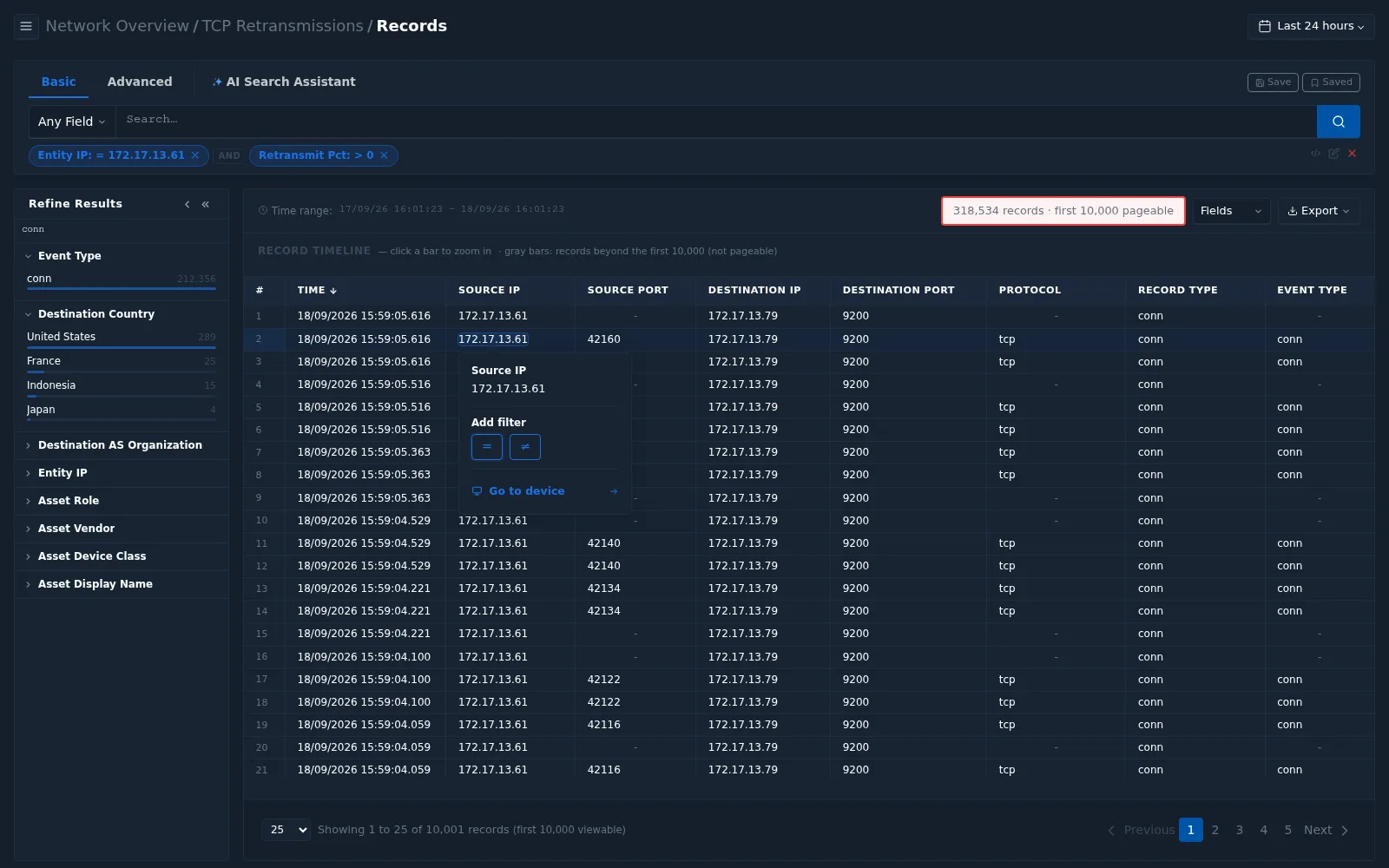

Select Records on the row of 172.17.13.61. The Records page opens with the filters Entity IP: = 172.17.13.61 AND Retransmit Pct: > 0 — only the connections of this host that had retransmissions.

• Every record goes to the same destination: 172.17.13.79, port 9200. The problem is not spread across the network — it is one conversation.
• Select a value in a cell, such as the source IP, to Add filter (= or ≠) or Go to device.
• Note that the same connection (same source port, for example 42160) appears in more than one record. Keep this in mind for Step 6.

Step 4 — Measure the client

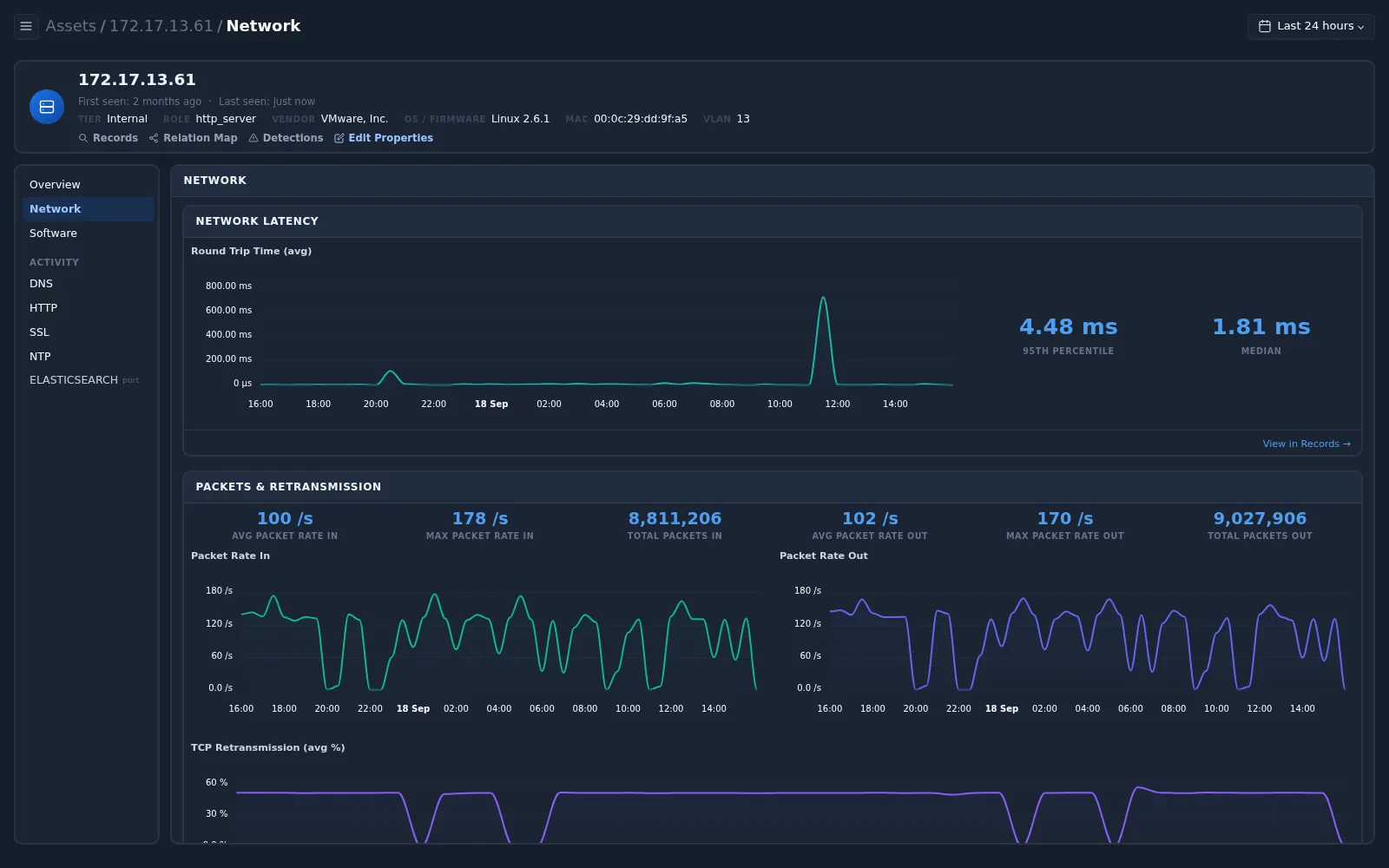

Open the client's asset profile (Go to device, or the Asset link in the drill-down) and select Network.

Measurement	Value for 172.17.13.61	Meaning
Round-trip time — median	1.81 ms	Packets reach the server and are acknowledged quickly
Round-trip time — 95th percentile	4.48 ms	Even slow cases are fast — no sign of a congested path
TCP Retransmission (avg %)	Elevated throughout the day	Retransmissions are constant, not tied to busy hours

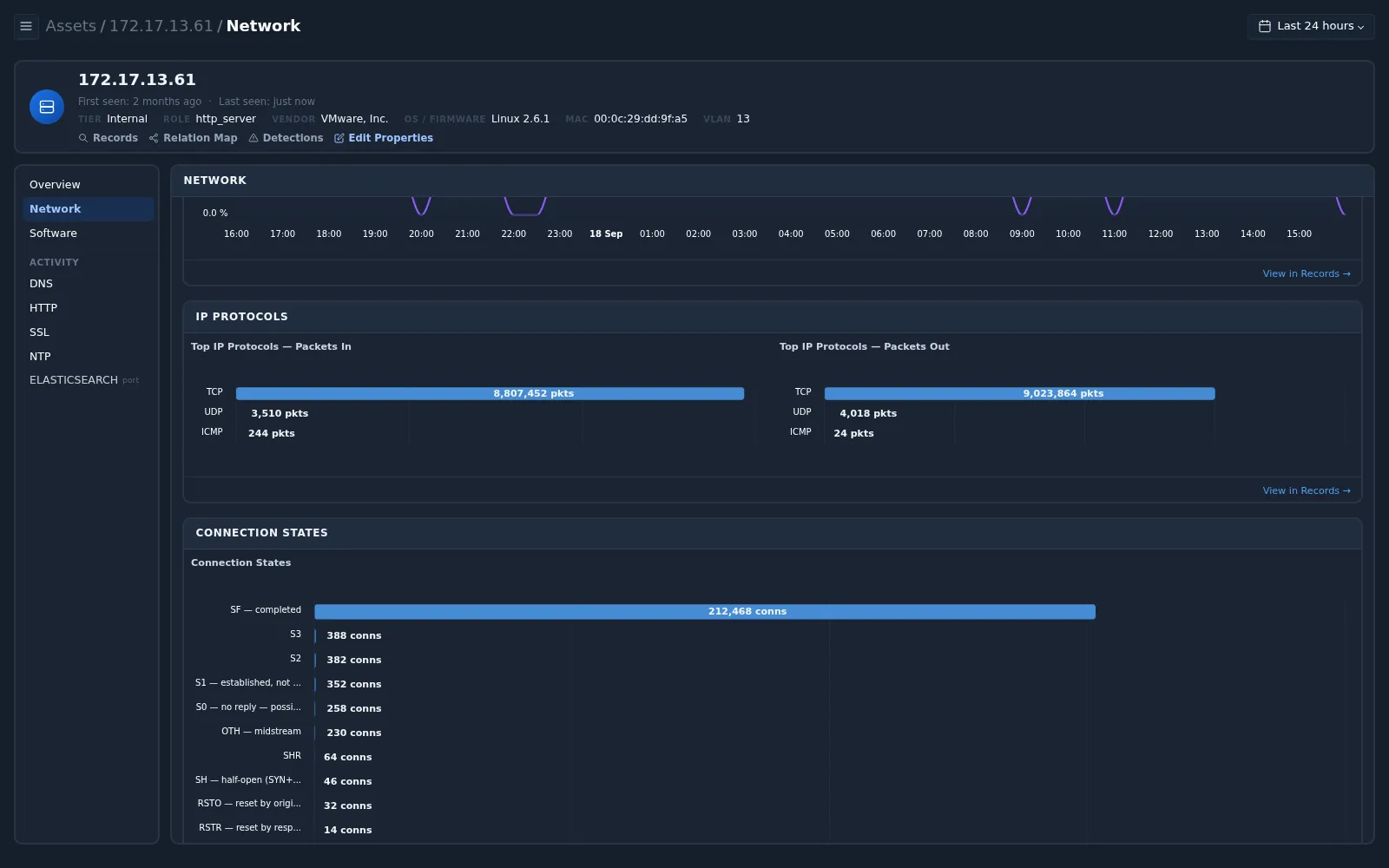

Scroll to Connection States.

212,468 connections ended in state SF — completed. Only a few hundred ended as S0 (no reply), RSTO or RSTR (reset). The connections succeed.

Step 5 — Check the server

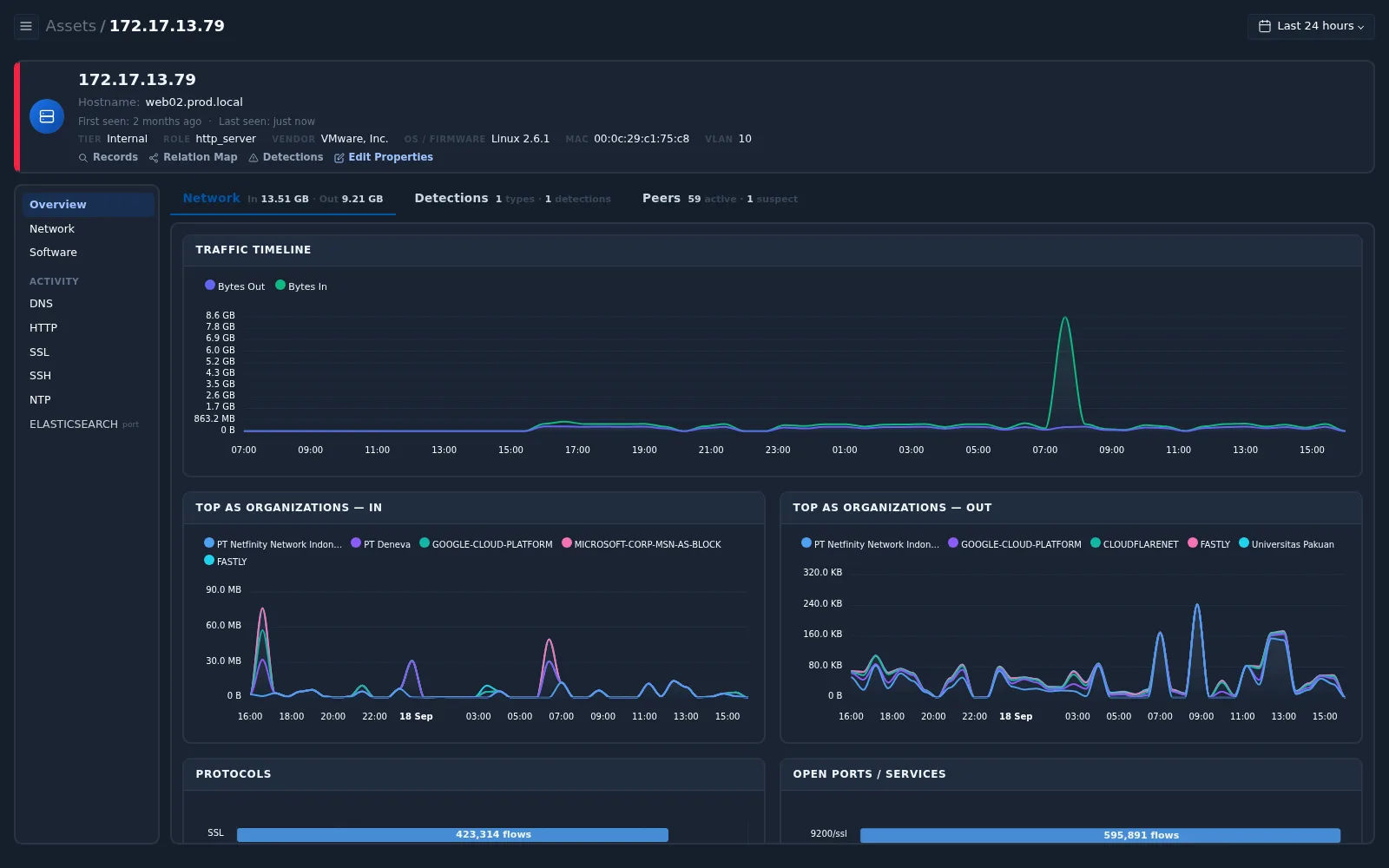

Open the asset profile of the destination, 172.17.13.79.

Attribute	Value	Meaning
Hostname	web02.prod.local	The server behind the slow searches
Open ports / services	9200/ssl (the busiest service)	Port 9200 is commonly used by search engines such as Elasticsearch; here it is served over TLS
VLAN	10 (the client is in VLAN 13)	Traffic between client and server is routed between VLANs

Step 6 — Diagnose: network, server, or capture?

Put the evidence together:

Evidence	Points to
RTT median 1.81 ms, 95th percentile 4.48 ms	Not a slow or congested network path
Zero window = 0	Not a receiver that cannot keep up
Almost all connections end in SF (completed)	Connections succeed; this is not an outage
About one retransmission per connection, all day	A systematic effect that repeats on every connection
~105,000 connections per day to port 9200 (over one per second)	The client opens a new connection for each request
The same connection appears in more than one record; client and server are in different VLANs	Packets may be captured twice

Use this matrix for any similar investigation:

Pattern	Most likely area	What to check next
High RTT + retransmissions + many S0 or resets	Network path	Link utilization, errors on switch ports, Wi-Fi, WAN links
High zero window	Receiver / server	Server CPU, memory, disk, and application load
Many RST	Refused connections	Closed ports, firewalls, or scanning (see Security pages)
Low RTT, completed connections, ~1 retransmission per connection	Systematic / capture	Duplicate mirroring, connection handling in the application

For this example, the recommended checks are:

1. Rule out duplicate capture. Traffic routed between VLAN 10 and VLAN 13 can be mirrored twice if both VLANs (or both the access and uplink ports) are SPAN sources. A packet seen twice looks like a retransmission. Review the mirror configuration — see Packet Mirroring Configuration and Planning considerations.
2. Review the connection pattern with the application team. Opening a new TLS connection for every request adds a handshake to each search. Reusing connections (keep-alive or a connection pool) usually makes such applications noticeably faster.
3. Check the server web02.prod.local for load at the times users report slowness, and compare with the Throughput and Packet Rate charts on its Network tab.

Conclusion for the ticket: The network path between the application and the search server is fast (RTT under 5 ms) and connections complete normally. The constant retransmission count is systematic — first verify it is not caused by duplicate mirroring; then review connection reuse in the application and the load on the search server.

Step 7 — Share the result

• Send the Network Report from Reports to the network or application team, or schedule it to track improvement over time.
• After a change (for example connection reuse or a mirroring fix), repeat Steps 2–4 and compare the retransmission ratio and connection count.

Checklist

Step	Question to answer	Where
1	Are there TCP problems? All day or at specific times?	Network Overview › TCP Issues, TCP Health
2	Which hosts are affected? Retransmissions or resets?	TCP Issues › TCP Retransmissions
3	Which conversation causes it?	Records (Retransmit Pct > 0)
4	Is the path slow? Do connections complete?	Asset › Network: latency, retransmission, connection states
5	What is the server and service?	Server asset profile
6	Network, server, application, or capture?	Diagnosis matrix
7	Who needs the result?	Reports › Network Report
